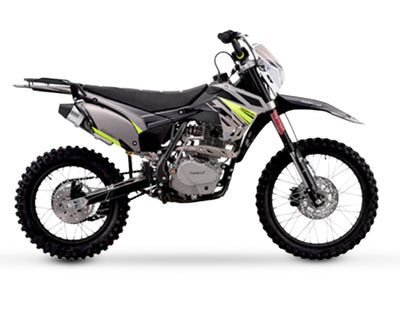

TSB 250
In our attempt to make riding even more accessible & affordable, we've taken our popular X3 format and swapped out the suspenion, wheels, swingarm and a few other bits to create an entry level setup providing a more affordable full size bike for mid level riders or those just wanting to learn on a full size bike with a lower seat height.Free Spare Parts Kit
Frame
Updated Frame
In the frame department we have simply taken what works from our proven TSX230 and added a few tweaks here and there for the new X3 format, a sturdy well balanced frame makes handling the trails a treat and keeping that nimble feeling that you get on a little bike.
Airbox
Updated Flow
Continuing the update trend but also sticking to what works, here you will find the dual layer caged air filter and stainless mesh filter in the tried and tested airbox design that doesn’t restrict airflow. Whether you are on a dusty trail or get caught in the rain the X3 Airbox will help keep you going.
Footpegs
Durable
We used high-quality stainless steel material for strength and to look fresh for years to come, finished off with perfectly fitting springs.
Product Packaging
Specifications
| ENGINE & TRANSMISSION | |
| Engine | CB | 4 Stroke |
| CC Rating | 250cc |
| Gearbox | Manual | 5 speed (1N2345) |
| Starter | Electric Start |
| Carburetion | Jingke PZ27 (#97main 35pilot VAR) |
| Exhaust | BTL189 D8 (280mm) |
| Final Drive | 428 Chain 124L | 15/48T |
| Top Speed | 105kph/65mph (depending on gearing) |
| SUSPENSION, BRAKES & WHEELS | |
| Suspension Front | VS1 Inverted Forks | Length 790mm | 45/48 |
| Suspension Rear | Mono shock | 335mm |
| Brakes Front | 190mm Disc | |
| Brakes Rear | 230mm Disc | |
| Wheel & Tire Front | Steel Rim | 70/100 - 19" |
| Wheel & Tire Rear | Steel Rim | 90/100 - 16" |
| DIMENSIONS & WEIGHT | |
| Wheelbase (axle to axle) | 1380mm | 54" |
| Seat Height | 930mm | 36" |
| Weight: N.W/G.W | 103/122kg | 227/268lbs |
| Tank Capacity | 6.3 Litres | 1.6 gallon |
| Product Packing Size | 1550x455x830 |
